Parts of a Microscope and Their Functions: A Complete Beginner’s Guide

A microscope uses lenses, light, focus controls, a specimen holder, and a stable frame to produce an enlarged image. Traditional compound microscopes use an eyepiece and objective lenses. Digital models add a camera sensor, screen, image processor, and storage or computer connections. Knowing these parts makes it easier to focus correctly, control light, protect the instrument, and choose the right design for the work.

What Are the Main Parts of a Microscope?

Most microscopes combine optical, illumination, focusing, specimen-control, and support systems. The exact components vary by microscope type and intended use. Traditional compound microscopes rely on eyepieces, objective lenses, a stage, and transmitted light, while digital models may add a camera sensor, image processor, screen, storage, and external display connections.

What Are the Optical and Illumination Parts of a Microscope?

Eyepiece, Objective Lenses, and Revolving Nosepiece

The eyepiece, or ocular lens, is the part at the top of a traditional microscope. A 10x eyepiece is common. It enlarges the image already formed by the objective lens.

Objective lenses sit close to the specimen and have the greatest effect on optical detail. A classroom microscope may include 4x, 10x, 40x, and 100x objectives. Total magnification equals eyepiece magnification multiplied by objective magnification, so a 10x eyepiece and 40x objective produce 400x.

The revolving nosepiece holds the objectives and rotates each one into position. Stronger objectives show a smaller area, reduce working distance, and make focusing more sensitive.

Illuminator, Condenser, and Diaphragm

The illuminator provides light. Compound microscopes usually direct light upward through a thin slide. Digital inspection microscopes usually shine light down onto coins, circuit boards, tools, and other solid objects.

The condenser sits below the stage and concentrates light onto a transparent specimen. Correct positioning supports even illumination and useful resolution, especially at higher magnification.

The diaphragm controls the amount and angle of light entering the optical system. Partly closing it may improve contrast in a pale specimen. Opening it supports brighter, higher-resolution viewing. Too much light can wash out detail; too little makes focusing difficult.

Which Parts Hold, Move, and Focus the Specimen?

Stage, Stage Clips, and X-Y Controls

The stage supports the slide or sample. A central opening allows light to pass through. Stage clips hold a slide in place, while a mechanical stage uses X-Y controls to move it left, right, forward, and backward.

Precise movement matters at higher magnification because a small hand movement can push the target out of view. X-Y controls also help users scan a slide systematically.

Coarse and Fine Adjustment Knobs

The coarse adjustment knob makes large movements and finds the general focus at low magnification. Because it moves the stage or lens quickly, use it carefully when an objective is close to a slide.

The fine adjustment knob makes small movements and sharpens details. Start with the lowest objective, use coarse focus to find the image, center the target, and then use fine focus as magnification increases.

Focus Stand and Working Distance

Many digital microscopes focus by moving the camera head on a stand and turning a focus wheel. Working distance is the space between the lens and the specimen when the image is sharp.

A short distance is adequate for flat samples. Soldering and repair need more room for tools and hands. The stand must also resist movement because vibration becomes obvious on a magnified screen.

Which Parts Support and Stabilize the Microscope?

Microscope Arm and Frame

The arm connects the upper assembly to the base and supports the head, lenses, or focusing mechanism. On a classroom microscope, it is also one of the two safe carrying points: hold the arm with one hand and support the base with the other.

Digital microscopes may use a fixed column, flexible arm, boom stand, or articulated arm. Each design changes the working area, but all must hold the optical system steadily over the target.

Microscope Base and Stand

The base carries the microscope and resists vibration. Some traditional bases contain the illuminator. A digital base may include a work platform, measurement scale, clips, or controls.

A wide, rigid base improves stability at high magnification. A lighter stand may be portable, but it can transmit table movement into the image.

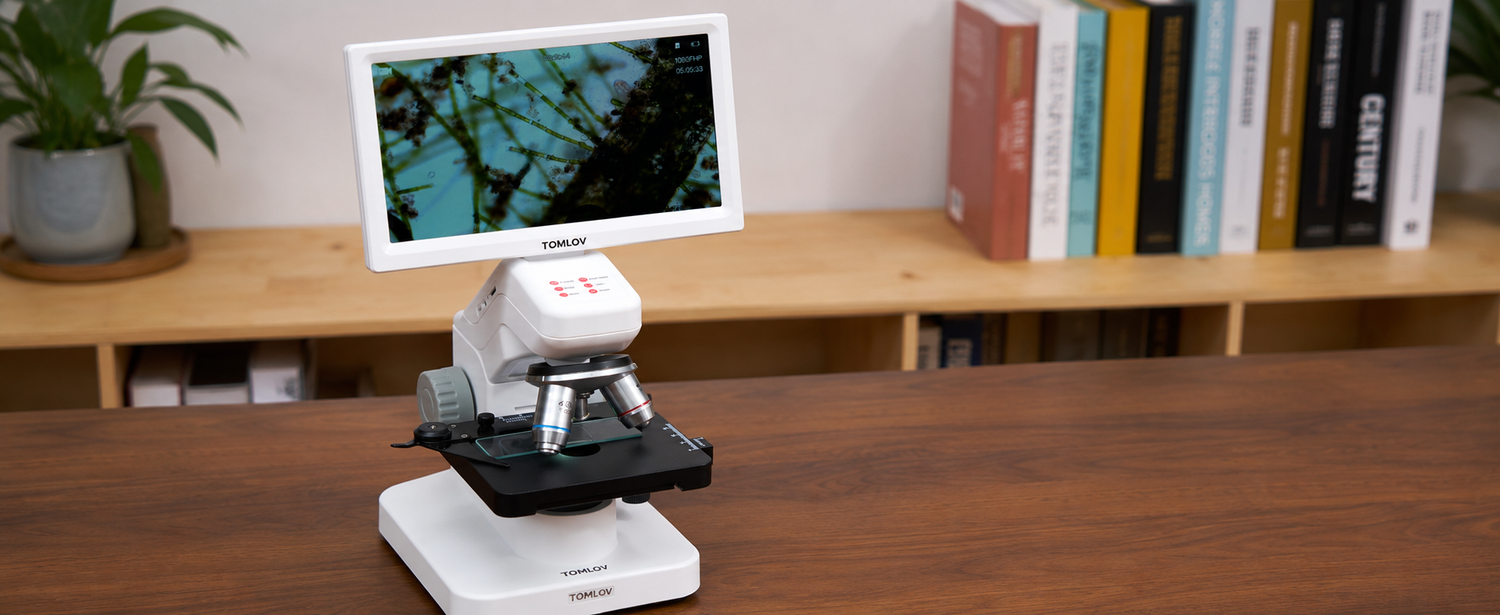

What Are the Main Parts and Features of a Digital Microscope?

Digital Lens, Camera Sensor, and Image Processor

The lens collects light from the subject and affects optical magnification, field of view, and working distance. Digital zoom only enlarges captured pixels; it does not reveal the same extra detail as optical magnification.

The camera sensor converts light into electronic image data. Image quality depends on the lens, sensor, lighting, focus, processing, and display, not only the megapixel count.

The image processor controls exposure, color, sharpness, noise, and video output before the image reaches the screen.

LCD Screen, HDMI, and USB Connections

An LCD screen displays a live image without a computer. A larger screen may improve comfort, but it does not increase captured detail.

HDMI sends video to an external monitor and is useful when a large, low-latency view matters. USB may support computer viewing, file transfer, recording, or measurement software. Functions and output resolution vary by model.

LED Lighting, Focus Stand, and Autofocus Sensor

Digital inspection microscopes often use an LED ring around the lens. It provides broad front lighting, but reflective objects may show glare. Side or gooseneck lights can reveal scratches, solder shape, raised lettering, and surface texture.

Manual models use stand height and a focus wheel. An Auto Focus Microscope adds a sensor or image-based system that finds or maintains focus. It is useful when samples change height or move frequently, although manual control can work better on reflective or low-contrast targets.

microSD Card, Photo Controls, and Measurement Software

A microSD card saves photographs and video without a computer. Buttons or a remote may control capture, exposure, white balance, playback, and digital zoom.

Computer software can measure length, angle, area, and diameter. Accurate results require calibration at the working distance and magnification being used. Changing the lens position or zoom setting may require recalibration.

Traditional vs. Digital Microscope Parts

A compound microscope is usually better for thin, transparent biological specimens. A digital microscope is generally more convenient for opaque surfaces, documentation, shared viewing, and tasks that require working space beneath the lens. The best digital microscope is therefore not simply the model with the highest advertised magnification, but the one whose lighting, working distance, stand, and display match the intended sample and application.

Which Microscope Parts Affect Image Quality Most?

The objective or digital lens sets the optical limit for detail, field of view, and working distance. Lighting determines whether edges and textures have enough contrast. The focusing mechanism must select the correct plane, while the stage, arm, and base must prevent movement.

On a traditional microscope, the eyepiece should display the objective image without obvious distortion. On a digital model, the sensor and processor must record the detail delivered by the lens. A high-resolution screen or digital zoom cannot correct poor optics, unstable support, weak focus, or unsuitable lighting.

How Should You Handle and Maintain Microscope Parts?

Carry a traditional microscope with one hand on the arm and the other beneath the base. Do not lift it by an eyepiece, screen, focus knob, or camera head. Keep fingers away from optical surfaces and use lens paper rather than ordinary tissues.

Do not force a stiff nosepiece, stage control, or focusing mechanism. Remove loose dust before wiping, keep liquids away from electronic ports, and cover the instrument when it is not in use. A tomlov digital microscope should be stored with its lighting off, cables loosely arranged, and the camera supported so the stand is not left under unnecessary strain.

Final Thoughts

Microscope parts work as one system. Lenses form the image, lighting creates usable contrast, the stage positions the specimen, focus controls select the sharp plane, and the frame keeps everything stable. Digital microscopes add sensors, processors, screens, connections, storage, and software. Understanding those roles makes setup faster and helps identify whether a poor image comes from focus, light, movement, magnification, or the wrong microscope type.

FAQs

How Many Main Parts Does a Microscope Have?

The number depends on the design. A basic compound microscope is often described with 10 to 15 main parts. A digital model may add a sensor, processor, display, ports, storage, and software controls.

What Are the Three Main Systems of a Microscope?

The three broad systems are optical, illumination, and mechanical. A digital microscope also has an electronic imaging system that captures, processes, displays, and stores the image.

Do Digital Microscopes Have Eyepieces?

Some do, but many use an LCD screen or external monitor instead. Screen-based designs are useful for recording, repair work, demonstrations, and shared viewing.

Which Microscope Part Controls Magnification?

In a compound microscope, the objective and eyepiece determine total magnification. In a digital microscope, the lens provides optical magnification, while screen size and digital zoom change how large the image appears.

What Is the Difference Between the Condenser and Diaphragm?

The condenser focuses light onto the specimen. The diaphragm controls the amount and angle of light entering the optical system. They work together but perform different jobs.
